Wooden window IV 87
Wooden window IV 87. Profile IV 87: 87 mm. Three-layer laminated dry wood. Custom Wood Window IV 87 with a selection of glass, finishes and hardware for homes, renovations and projects. Request an offer from Savo Kusić.
Profile IV 87
| Profile IV 87 | 87 mm |
|---|---|
| Dimension according to name and technical drawings | 87 × 80 millimeters |
| Profile thickness according to the original table | 87 mm millimeters |
| Uw | 1,1 |
| Ug | 1,1 |
| Uf | 1,1 |
| Uf | 0,5–0,8 |
| Hardware | Maco hardware system |
| Glazing | Thermo-insulating low-emissivity glass filled with argon, double- or triple-layer glass |
| Types of wood | Spruce, pine, oak, meranti and larch |
| Protection and finishing | Impregnation, isolation and final varnishing in two layers; color of the investor's choice |
| Colors outside and inside | The color of the rain protection supplement can follow the window in the RAL spectrum; exterior and interior color may be different |
| Glass division | ALU RAL, wood inside, wood on both sides or physically split |
Profile 87 × 80 mm according to the original name
Wooden window adapted to the object
On request, we can produce 100% wooden windows with classic wooden drip caps, instead of aluminum ones. For a stylishly finished appearance, we offer individual solutions that are adapted to your building in cooperation with architects and carpenters. The rain protection accessory can be supplied in a color that matches the color of the window in the RAL spectrum. You have the freedom to choose colors — if you wish, you can choose different colors for the exterior and interior.
Construction

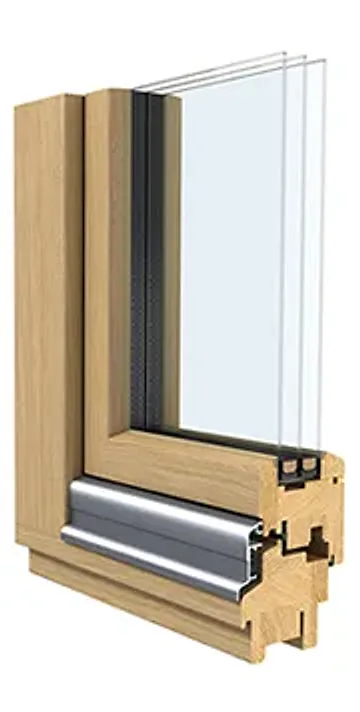

Profile section
Original technical presentation of the profile with aluminum rain protection, hardware, sealing and insulating glass.
A note about the data
Profile IV 87 · 87 mm
Profile IV 87: 87 mm. Three-layer laminated dry wood.
For the project specification, it is necessary to confirm the exact construction of the profile in the offer. Profile IV 87: 87 mm.
Source table
Characteristics
Technical data transferred from the original table without truncation, including a dimension that does not conform to the name of the profile.
| Profile thickness | 87 mm |
|---|---|
| Material | Three-layer laminated dry wood |
| Merging | Plugging and gluing of profiles with waterproof glue class D4 |
| Protection | Four layers of protection. Impregnation, insulation and final varnishing in two layers. The color of the investor's choice |
| Hardware | Maco hardware system |
| Glazing | Thermo-insulating low-emissivity glass filled with argon, double- or triple-layer glass |
Energy efficiency
A lower value means better insulation
The symbols Uf, Ug and Uw indicate thermal conductivity. A lower value means lower conductivity, i.e. better insulation.
Values shown in source profile
Labels and decimal notation are preserved as they appear on the original graphics.
A note about the data
Uw · Ug · Uf
Uw 1,1 · Ug 1,1 · Uf 1,1 · Uf 0,5–0,8
For the project specification, check the required combination of profile and glass in the offer.
Gallery
Technical drawings, profiles and manufactured windows
The original gallery contains technical drawings marked with dimensions 87 and 80 mm, cross-sections, profile details and photos of the windows made.
Final processing
Wood colors
The original tone map serves as an orientation. The final appearance depends on the type of wood, preparation and agreed finish.
Material
Types of wood
The profile is displayed in five types of wood in the original content.
Options
Glass division
Decorative and physical divisions shown in the source profile are available.
More information
Custom project
Send measurements and desired configuration
Please provide dimensions, quantities, wood type, glass division, finish and glazing requirements so we can prepare a specific offer.
