Wooden windows
Wooden window IV 76
Profile 76 × 80 mm of three-layer laminated dry wood, with MACO hardware and a choice of two-layer or three-layer low-emissivity glass filled with argon. Profile 76 × 80 mm: 76 mm.
Profile 76 × 80 mm
| Profile 76 × 80 mm | 76 mm |
|---|---|
| Profile thickness | 76 × 80 millimeters |
| The width of the wing/stock flap | 123 millimeters |
| The width of the middle column | 132 millimeters |
| Flap width bottom horizontal stem/wing | 133 millimeters |
| Uw | 1,3 |
| Ug | 1,3 |
| Uf | 1,1 |
| Uf | 0,5–0,8 |
| Hardware | Maco hardware system |
| Glazing | Thermo-insulating low-emissivity glass filled with argon, double- or triple-layer glass |
| Types of wood | Spruce, pine, oak, meranti and larch |
| Protection and finishing | Impregnation, isolation and final varnishing in two layers; color of the investor's choice |
| Colors outside and inside | The color of the rain protection supplement can follow the window in the RAL spectrum; exterior and interior color may be different |
| Glass division | ALU RAL, wood inside, wood on both sides or physically split |
Profile 76 × 80 mm
Wooden window adapted to the object
On request, we can produce 100% wooden windows with classic wooden drip caps, instead of aluminum ones. For a stylishly finished appearance, we offer individual solutions that are adapted to your building in cooperation with architects and carpenters. The rain protection accessory can be supplied in a color that matches the color of the window in the RAL spectrum. You have the freedom to choose colors — if you wish, you can choose different colors for the exterior and interior.
Construction

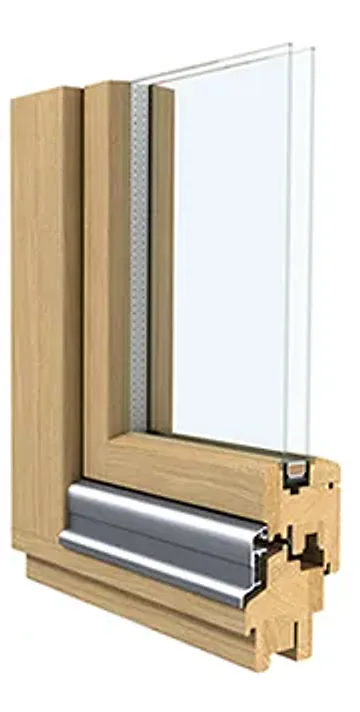

Profile section
Original technical presentation of the profile with aluminum rain protection, hardware, sealing and insulating glass.
Profile 76 × 80 mm
Characteristics
Technical data transferred from the original profile without shortening.
| Profile thickness | 76 mm |
|---|---|
| Material | Three-layer laminated dry wood |
| Merging | Plugging and gluing of profiles with waterproof glue class D4 |
| Protection | Four layers of protection. Impregnation, insulation and final varnishing in two layers. The color of the investor's choice |
| Hardware | Maco hardware system |
| Glazing | Thermo-insulating low-emissivity glass filled with argon, double- or triple-layer glass |
| Details | Flap width Sash/Stem 123 mm, Middle column width 132 mm, Flap width Lower horizontal stem/Sash 133 mm |
Energy efficiency
A lower value means better insulation
The symbols Uf, Ug and Uw indicate thermal conductivity. A lower value means lower conductivity, i.e. better insulation.
Values shown in source profile
Labels and decimal notation are preserved as they appear on the original graphics.
A note about the data
Uw · Ug · Uf
Uw 1,3 · Ug 1,3 · Uf 1,1 · Uf 0,5–0,8
For the project specification, check the required combination of profile and glass in the offer.
Gallery
Profiles, details and derived windows
Renderings, details of fittings and photos of rendered windows from the original profile gallery IV 76.
Final processing
Wood colors
The original tone map serves as an orientation. The final appearance depends on the type of wood, preparation and agreed finish.
Material
Types of wood
The profile is displayed in five types of wood in the original content.
Options
Glass division
Decorative and physical divisions shown in the source profile are available.
More information
Custom project
Send measurements and desired configuration
Please provide dimensions, quantities, wood type, glass division, finish and glazing requirements so we can prepare a specific offer.
