Wooden windows
Double wooden window
The double profile Wood/Wood combines the outer element 70 × 81 mm and the inner profile 42 × 81 mm, Maco fittings and low-emission insulating glass filled with argon.
Profile Wood/Wood — double window
| Outer profile | 70 × 81 millimeters |
|---|---|
| Internal profile | 42 × 81 millimeters |
| Uw | 0,84 |
| Ug | 0,8 |
| Ug | 0,9 |
| Hardware | Maco hardware system; optional hidden fitting |
| Glazing | Thermo-insulating low-emissivity glass filled with argon |
| Types of wood | Spruce, pine, oak, meranti and larch |
| Protection | In-depth protection against moisture, fungi, rotting and insects. UV protection. |
| Glass division | ALU RAL, wood inside, wood on both sides or physically split |
Profile Wood/Wood
Double window for protected and historical buildings
The source describes the Wood/Wood profile as a double window specially designed for buildings under the protection of the Institute for the Protection of Cultural Monuments and states that it meets conservation requirements with improved energy efficiency. On the outside there is a Eurofalc/Euronut window with double sealing, and on the inside a profile of 42 mm with single glass. The two parts are connected into a solid and compact unit for easier installation.
Construction

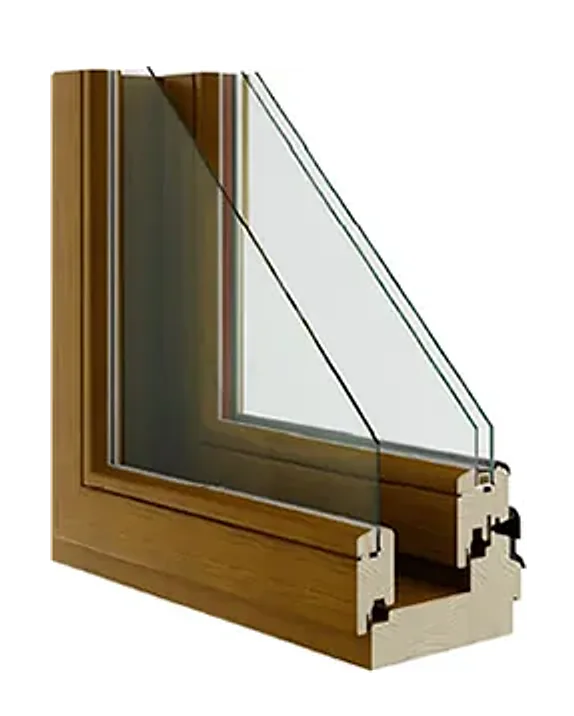

Profile section
Original technical presentation of the profile with hardware, sealing and insulating glass.
Source table
Characteristics
The technical data are transferred from the original table without shortening.
| Profile thickness | 70 × 81 mm + 42 × 81 mm |
|---|---|
| Material | Three-layer laminated wood |
| Merging | Plugging and gluing of profiles with waterproof glue |
| Protection | In-depth protection against moisture, fungi, rotting and insects. UV protection. |
| Hardware | Maco hardware system (hidden hardware optional) |
| Glazing | Thermo-insulating low-emissivity glass filled with argon |
Thermal conductivity (double layer glass)
A lower value means better insulation
The symbols Uf, Ug and Uw indicate thermal conductivity. A lower value means lower conductivity, i.e. better insulation.
Values shown in source profile
Labels and decimal notation are preserved as they appear on the original graphics.
A note about the data
Uw · Ug · Uf
Uw 0,84 · Ug 0,8 · Ug 0,9
For the project specification, check the energy combination of profile and glass in the offer.
Gallery
Technical details, glass divisions and manufactured windows
The original gallery shows window sections, wooden cross bars to divide the glass and built-in windows.
Final processing
Wood colors
The original tone map serves as an orientation. The final appearance depends on the type of wood, preparation and agreed finish.
Material
Types of wood
The profile is displayed in five types of wood in the original content.
Options
Glass division
Decorative and physical divisions shown in the source profile are available.
Custom project
Send measurements and desired configuration
Please provide dimensions, quantities, wood type, glass division, finish and glazing requirements so we can prepare a specific offer.
